Altern DC HiPot Tester - 60kV/80kV/100kV/120kV/
200kV/300kV
Notify Me
ALTERN
Description

Description

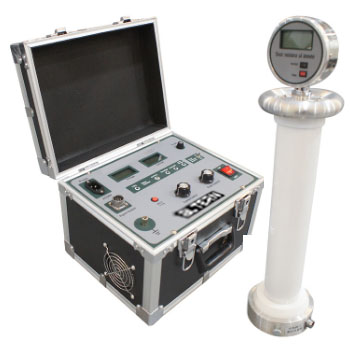

Altern DC Hipot Tester adopts high frequency Pulse Width Modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness. High-pressure components use Dupont new filling material, making the product more stable and reliable. Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.



Features

  1. Full range of linear smoothly adjusted voltage, with voltage regulation accuracy smaller than 0.1%; voltage measurement accuracy is 0.5%, resolution 0.1kv; Current measurement accuracy is 0.5%, the minimum resolution: control box 1µA, shock resistance current 0.1µA.



  1. Over-voltage setting function displays the over-voltage value during regulation process;
    perfect protection against discharge of over-voltage, over-current and short circuit. This is the best companion for cable experiments.



  1. Perfect break line and non-zero potential start protection function protects the operator and samples at any time. This product has overall design of shock-proof control box, concise, clear panel design and voice prompt for operation.



Specification

Voltage (KV)/mA
Current (mA)

Control Box

High-Voltage Transformer

Rated Voltage

Dimension(mm)

Weight(kg)

Dimension(mm)

Weight(kg)

60/2-5

60KV

310 * 250 * 230

5kg

470 * 260 * 220

6kg

80/2-5

80KV

310 * 250 * 230

6kg

490 * 260 * 220

8kg

100/2-5

100KV

310 * 250 * 230

6kg

550 * 260 * 220

8kg

120/2-5

120KV

310 * 250 * 230

7kg

600 * 260 * 220

10kg

200/2-5

200KV

310 * 250 * 230

8kg

1000 * 280 * 270

20kg

300/2-5

300KV

310 * 250 * 230

9kg

1300 * 280 * 270

22kg

Output Polarity

Negative polarity, no-voltage start, linear continuous adjustment

Operation Voltage

50HZ AC220V±10%

Voltage Error

0.5%±2， minimum solution 0.1KV

Current Error

0.5%±2， minimum solution 0.1µA

Ripple Factor

better than 0.5%

Voltage Stability

Random fluctuation , grid change is 10% , the fluctuation <=0.5%

Working Manner

Interval working, less than 30 minutes under rated load

Temp. & Humidity

Temperature: 0-40℃ , humidity: less than 90%

Storage

Temperature: -10℃ ～40℃ , humidity: less than 90%

Altitude

Lower than 3000 m
